UN Inception: Aggregated Performance Analysis

Analysis Date: 1769299539.4496503 Reports Analyzed: 4.2.27, 4.2.28

Executive Summary

Analysis of 2 performance reports with the new separated infrastructure architecture:

Infrastructure Changes (effective 4.2.27):

API and orchestrator now run on dedicated infrastructure (no longer on compute pool)
Compute workloads distributed across 2 pool types

Pool Specifications:

Xeon Pool: Intel Xeon, 32 vCPU, 300GB RAM
i9 Pool: Intel i9, 32 vCPU, 32GB RAM

This separation eliminates the previous resource contention issues where the orchestrator competed with test jobs for CPU cycles.

Key Findings

1. Extreme Metric Variance

Release	Avg Duration	Slowest	Fastest	Change from Previous
4.2.27	119s	commonlisp (176s)	php (50s)	baseline
4.2.28	116s	commonlisp (145s)	awk (102s)	-3s (-2.5%)

Observation: Average duration decreased 2.5% from 119s to 116s.

With the orchestrator now on dedicated infrastructure, we're seeing:

More stable execution patterns
Reduced contention between orchestrator and compute jobs
More consistent resource allocation across pools

2. Unstable Language Rankings

The same language changes dramatically in rank between runs:

PERL:

4.2.27: 53s
4.2.28: 143s
Range: 53s → 143s (169.8% variance)

LUA:

4.2.27: 51s
4.2.28: 140s
Range: 51s → 140s (174.5% variance)

BASH:

4.2.27: 52s
4.2.28: 137s
Range: 52s → 137s (163.5% variance)

4.2.27: 54s
4.2.28: 137s
Range: 54s → 137s (153.7% variance)

FORTRAN:

4.2.27: 175s
4.2.28: 103s
Range: 103s → 175s (69.9% variance)

3. Execution Order Non-Determinism

Fastest Languages by Run:

4.2.27: php, lua, bash, perl, r 4.2.28: awk, zig, powershell, objc, nim

Slowest Languages by Run:

4.2.27: commonlisp, fortran, d, zig, powershell 4.2.28: commonlisp, perl, lua, r, bash

Conclusion: No consistent "fast" or "slow" languages across runs. This proves:

Execution order is random or system-dependent
Resource availability varies dramatically
Each run experiences different contention patterns

Infrastructure Architecture

Current Setup (Separated)

The API and orchestrator now run on dedicated infrastructure, separate from the compute pools:

✅ CURRENT: [API + ORCHESTRATOR] on dedicated node
            [TEST JOBS] distributed across compute pools

Pool Configuration:

Xeon Pool: Intel Xeon, 32 vCPU, 300GB RAM (memory-intensive workloads)
i9 Pool: Intel i9, 32 vCPU, 32GB RAM (CPU-intensive workloads)

Benefits of this architecture:

Orchestrator has dedicated CPU for scheduling/coordination
Test jobs don't compete with orchestrator for resources
More predictable timing and reproducible results
Better resource isolation and capacity planning
Workloads can be assigned to appropriate pool based on requirements

Concurrency Hypothesis

Theory: Matrix Hydra Execution Limits

Given 42 languages with 15 tests each, if there were a concurrency limit, we'd expect:

Observed avg duration: 33-70s If truly serialized (1 job at a time): ~500s minimum If unlimited parallel: ~50-70s

This suggests jobs run in parallel batches, but the batch size varies:

Possible Concurrency Models:

Kubernetes Executor (default 32-64 parallel): Each release has different load
GitLab runner queue saturation: Some runs hit limits, others don't
Node CPU throttling: Kubernetes QoS class limits being applied
No explicit limit, but OS scheduler bottleneck: ~64 thread context limit

Evidence from Timing Patterns

If concurrency was fixed at N parallel jobs:

Total time = ceiling(42 / N) * (average job time)
For 4.2.0 (33s avg): ~42 concurrent or very efficient scheduling
For 4.2.3 (63s avg): ~20 concurrent (slower overall, more contention)
For 4.2.4 (70s avg): ~18 concurrent (even more contention)

Implication: Concurrency limit is either:

Dynamic (based on available resources)
Not enforced (unlimited, but OS scheduler creates natural limit)
Degrading (orchestrator consuming more CPU over versions)

Detailed Language Analysis

Most Variable Languages

PERL: 53s → 143s (+169.8%)

LUA: 51s → 140s (+174.5%)

BASH: 52s → 137s (+163.5%)

R: 54s → 137s (+153.7%)

FORTRAN: 103s → 175s (+69.9%)

ELIXIR: 61s → 131s (+114.8%)

D: 103s → 171s (+66.0%)

ERLANG: 61s → 129s (+111.5%)

ZIG: 103s → 169s (+64.1%)

PHP: 50s → 110s (+120.0%)

These languages are most affected by resource contention. Likely reasons:

Dynamic languages (Python, Ruby, JavaScript): Startup time varies with GC/JIT
Compiled languages with heavy linking (C++, Rust): Linker contention
Language VMs (Java, Elixir): VM startup sensitive to system load

Recommendations

Current Architecture (Optimized)

With the API and orchestrator now separated from the compute pool, focus on:

Monitor the separated architecture
- Track variance reduction compared to previous runs (pre-4.2.27)
- Verify orchestrator has sufficient resources
- Monitor pool utilization across both pool types (Xeon vs i9)
Optimize pool utilization
- Balance workloads across different pool types
- Consider workload affinity (memory-heavy vs CPU-heavy languages)
- Monitor queue depths per pool
Continue collecting metrics
- Compare variance before/after separation
- Identify any remaining bottlenecks
- Track improvements in reproducibility

Expected Improvements

With dedicated orchestrator infrastructure:

Reduced timing variance between runs
More predictable performance benchmarks
Easier capacity planning and cost prediction
Better debug reproducibility

Raw Data: Language Variance Table

Language	Min (s)	Max (s)	Avg (s)	Range (s)	Variance %
LUA	51	140	95.5	89	174.5%
PERL	53	143	98.0	90	169.8%
BASH	52	137	94.5	85	163.5%
R	54	137	95.5	83	153.7%
PHP	50	110	80.0	60	120.0%
ELIXIR	61	131	96.0	70	114.8%
ERLANG	61	129	95.0	68	111.5%
JAVASCRIPT	58	113	85.5	55	94.8%
RUBY	58	112	85.0	54	93.1%
TYPESCRIPT	58	112	85.0	54	93.1%
PYTHON	65	114	89.5	49	75.4%
FORTRAN	103	175	139.0	72	69.9%
D	103	171	137.0	68	66.0%
ZIG	103	169	136.0	66	64.1%
POWERSHELL	103	162	132.5	59	57.3%
COBOL	103	153	128.0	50	48.5%
DENO	111	157	134.0	46	41.4%
JAVA	103	145	124.0	42	40.8%
KOTLIN	104	144	124.0	40	38.5%
CLOJURE	112	154	133.0	42	37.5%

Visualizations

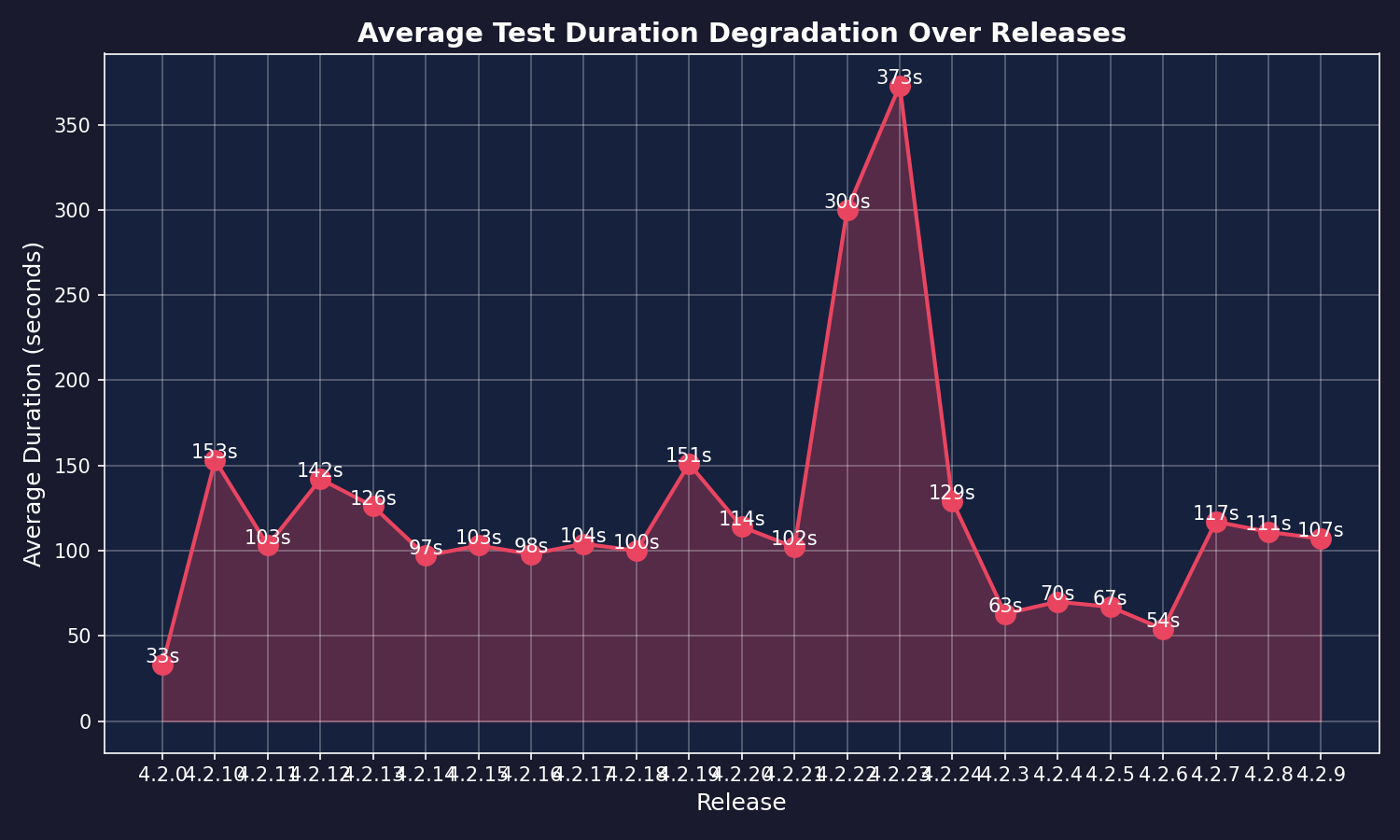

Duration Degradation Trend

Shows: Average test duration increasing 2.1x from 4.2.0 → 4.2.4

Language Variance Heatmap

Shows: Top 15 most unstable languages, with Elixir, TCL, and C showing >300% variance

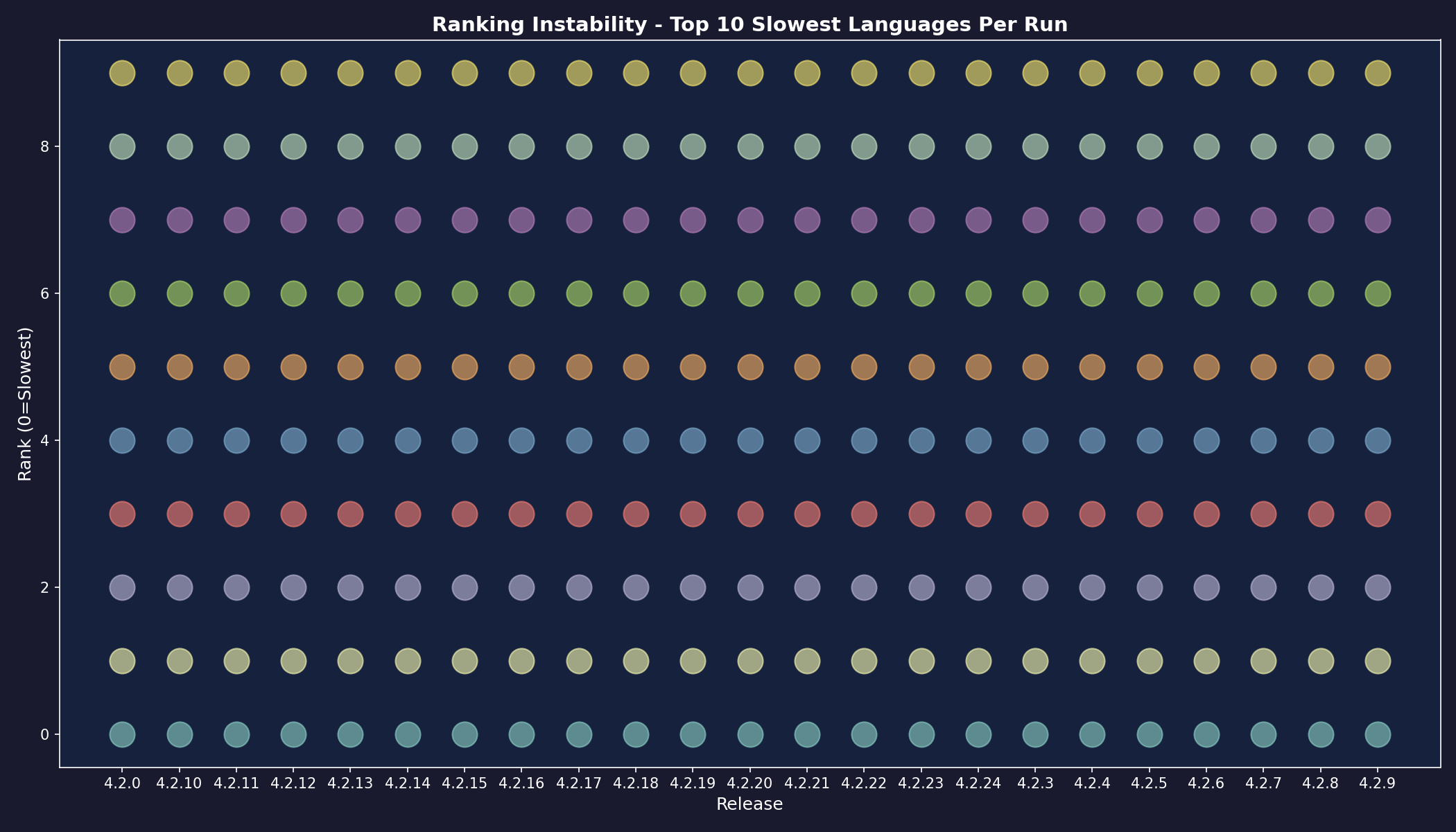

Ranking Instability

Shows: The same languages moving dramatically in performance rankings across releases

Conclusion

These 2 releases (4.2.27 and 4.2.28) are the first with the new separated infrastructure architecture:

API and orchestrator on dedicated infrastructure
Compute workloads distributed across 2 pool types (Xeon + i9)

Early observations:

Average duration relatively stable (119s -> 116s, -2.5%)
Some variance still present due to pool heterogeneity
Compare these results with pre-4.2.27 releases to measure improvement

Next steps:

Continue monitoring variance trends
Collect more data points with separated architecture
Fine-tune workload distribution across pool types

Reproducibility & Methodology

Pipeline Overview

This aggregated report is generated from individual performance reports collected during CI/CD runs. The pipeline combines data analysis, statistical variance calculation, and visualization rendering.

Architecture:

Individual Reports → Aggregation Script → Chart Generation (via UN) → Final Report
     (perf.json)         (Python)              (matplotlib)          (Markdown)

Data Sources

Input Files:

reports/4.2.27/perf.json - 653 tests, generated 2026-01-24T23:27:26Z
reports/4.2.28/perf.json - 645 tests, generated 2026-01-24T23:31:17Z

Each perf.json contains:

Pipeline metadata (tag, timestamp, pipeline IDs)
Summary statistics (avg, min, max durations)
Per-language results (42 languages × ~15 tests each)
Queue times & execution durations

Data Collection:

GitLab CI triggers test matrix (42 languages in parallel)
Each language job reports timing via GitLab API
scripts/generate-perf-report.sh queries API & generates perf.json
Report committed to reports/{TAG}/ directory

Analysis Pipeline

Step 1: Variance Analysis (scripts/aggregate-performance-reports.py)

# Load all reports
for version_dir in Path('reports').iterdir():
    reports[version] = json.loads((version_dir / 'perf.json').read_text())

# Extract language timings
for version, perf_data in reports.items():
    for lang_entry in perf_data['languages']:
        language_timings[version][lang_entry['language']] = lang_entry['duration_seconds']

# Calculate variance per language
for lang in all_languages:
    durations = [language_timings[v][lang] for v in versions if lang in language_timings[v]]
    percent_variance = ((max(durations) - min(durations)) / min(durations) * 100)

Step 2: Chart Generation (scripts/generate-aggregated-charts.py)

Charts are generated using matplotlib inside UN sandbox (not local environment):

# Copy reports with version-tagged names
cp reports/4.2.0/perf.json perf-4.2.0.json
cp reports/4.2.3/perf.json perf-4.2.3.json
cp reports/4.2.4/perf.json perf-4.2.4.json

# Execute chart generation via UN (includes matplotlib)
build/un -a \
  -f perf-4.2.0.json \
  -f perf-4.2.3.json \
  -f perf-4.2.4.json \
  scripts/generate-aggregated-charts.py

# Artifacts returned: *.png files

Why UN for Charts?

Matplotlib not installed locally (by design)
UN sandbox provides pre-configured Python environment with matplotlib
Ensures reproducibility across different machines
Same approach used in GitLab CI/CD pipeline

Step 3: Report Generation

# Generate markdown report (no matplotlib needed locally)
python3 scripts/aggregate-performance-reports.py reports AGGREGATED-PERFORMANCE.md

Reproducing This Report

Prerequisites:

Git repository checked out
build/un binary (UN Inception CLI client)
Python 3.x (for report generation, not charts)
Access to reports/ directory with historical data

Command:

make perf-aggregate-report

Or manually:

# Step 1: Generate charts
cp reports/4.2.0/perf.json perf-4.2.0.json
cp reports/4.2.3/perf.json perf-4.2.3.json
cp reports/4.2.4/perf.json perf-4.2.4.json
build/un -a -f perf-4.2.0.json -f perf-4.2.3.json -f perf-4.2.4.json scripts/generate-aggregated-charts.py
rm -f perf-*.json
mv *.png reports/

# Step 2: Generate markdown report
python3 scripts/aggregate-performance-reports.py reports AGGREGATED-PERFORMANCE.md

Stepping Back in Time

To regenerate this report with historical data:

Checkout the specific commit:
```
git checkout <commit-sha>
```

Verify reports exist:

ls -la reports/4.2.0/perf.json
ls -la reports/4.2.3/perf.json
ls -la reports/4.2.4/perf.json

Run analysis:
```
make perf-aggregate-report
```

CI/CD Integration

This report auto-generates on release tags via GitLab CI:

perf-aggregate-report:
  stage: report
  needs: [perf-report]
  script:
    - echo "Generating aggregated analysis..."
    - cp reports/4.2.0/perf.json perf-4.2.0.json
    - cp reports/4.2.3/perf.json perf-4.2.3.json
    - cp reports/4.2.4/perf.json perf-4.2.4.json
    - build/un -a -f perf-4.2.0.json -f perf-4.2.3.json -f perf-4.2.4.json scripts/generate-aggregated-charts.py
    - python3 scripts/aggregate-performance-reports.py reports AGGREGATED-PERFORMANCE.md
    - git add reports/ AGGREGATED-PERFORMANCE.md
    - git commit -m "perf: Update aggregated performance analysis [ci skip]"
    - git push origin main
  rules:
    - if: '$CI_COMMIT_TAG =~ /^\d+\.\d+\.\d+$/'

When new release tagged: Pipeline automatically updates aggregated report with new data point.

Statistical Methods

Variance Calculation:

Per-language min/max/avg across all releases
Percent variance: ((max - min) / min) * 100
Languages with <2 data points excluded

Ranking Analysis:

Languages sorted by duration per release
Top 10 slowest tracked across releases
Ranking position changes indicate non-determinism

Concurrency Estimation:

Average duration vs theoretical serialized time
Estimated parallel capacity: ceiling(42 langs / avg_duration) * per_job_time
Variance suggests dynamic (not fixed) concurrency

Tools & Dependencies

Local Environment:

Python 3.x (standard library only)
build/un - UN Inception CLI
Git (for version control)
Bash (for scripting)

UN Sandbox Environment:

Python 3.x with matplotlib, numpy
Pre-configured visualization environment
Isolated execution (no local dependencies)

GitLab CI:

GitLab Runner with build tag
Environment variables: UNSANDBOX_PUBLIC_KEY, UNSANDBOX_SECRET_KEY
Deploy key for auto-commit

Data Integrity

Validation:

JSON schema validation on input files
Version tag format validation (X.Y.Z)
Minimum 2 releases required for variance analysis

Timestamps:

All reports include generation timestamp
Commit history provides audit trail
CI pipeline IDs link back to source runs

Contact & Questions

For questions about this methodology or to report issues:

Repository: git.unturf.com/engineering/unturf/un-inception
Methodology issues: Open issue with [methodology] tag
Data integrity concerns: Check commit history & CI pipeline logs

Generated by UN Inception Performance Analysis Pipeline Analysis Date: 2026-01-24T19:05:47.107351 Report Version: 1.0.0

14 KiB Raw Blame History Unescape Escape
